Overview

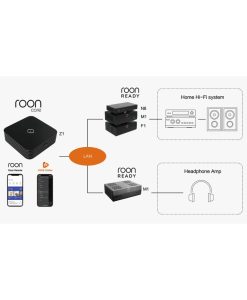

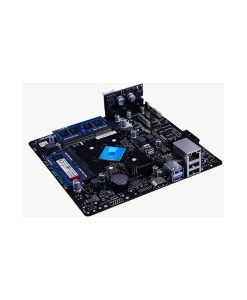

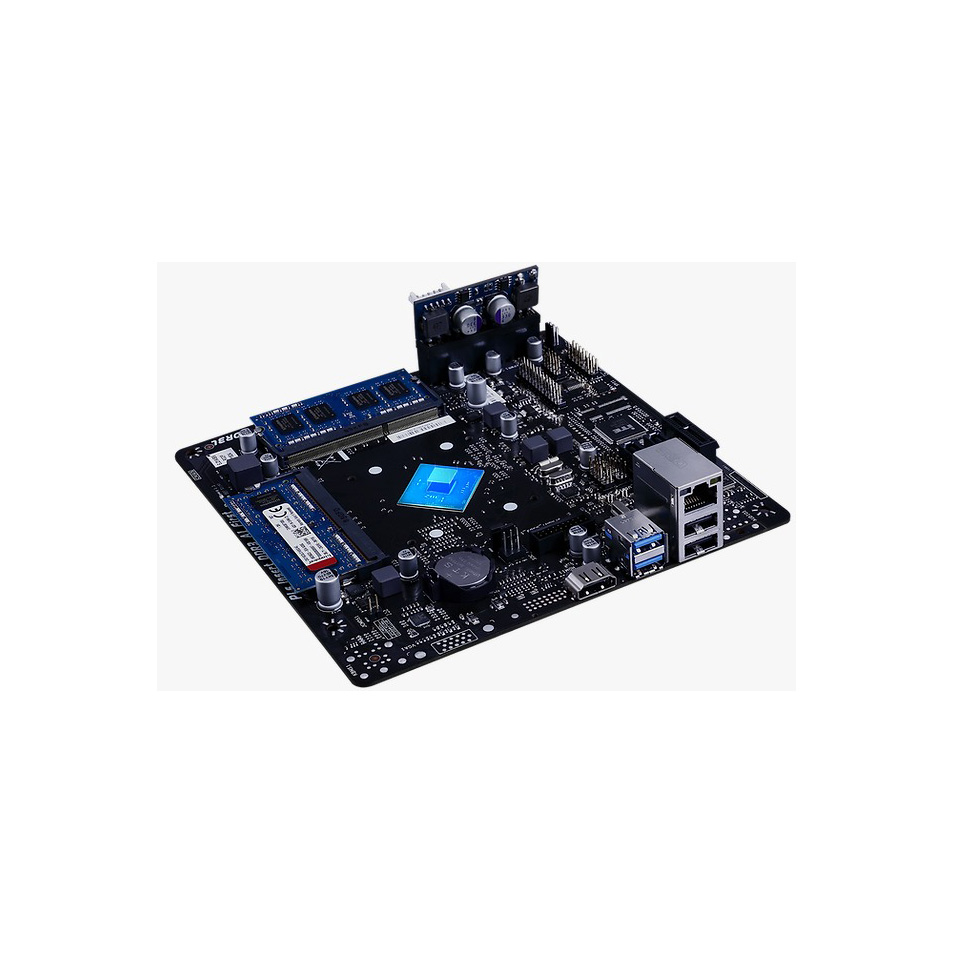

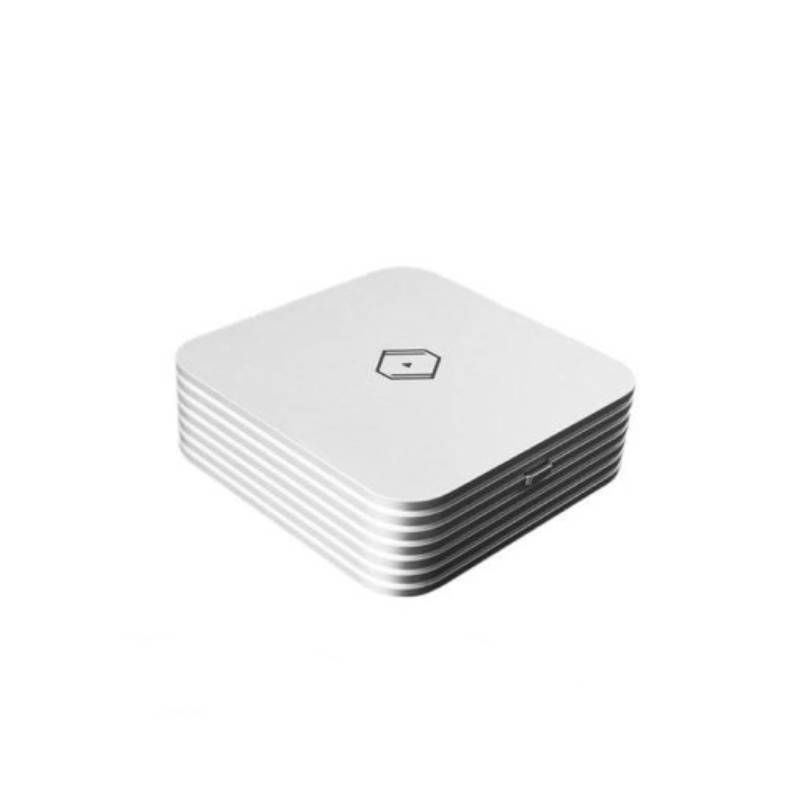

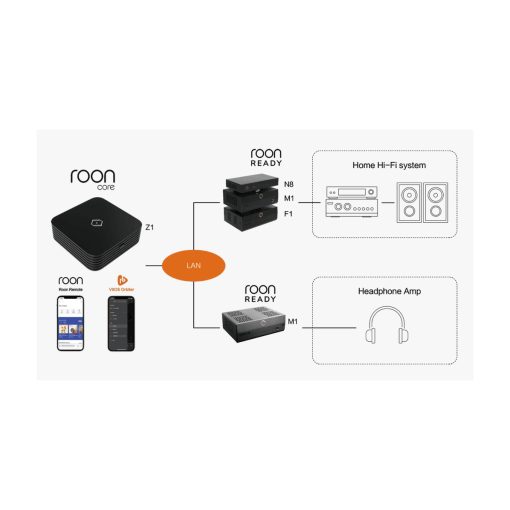

High-performance music server with an advanced hardware mainboard, high-quality CNC aluminum alloy chassis, and optimized music server OS & software giving the pleasant user experience. Z1 is the ideal digital music center for your home audio network, as well as a solid computing node to serve versatile streaming services. Enjoy superior sound quality through your HiFi system.
Easy to Use, Pleasant User Experience
| Weight | 2 kg |
|---|---|
| Color | Black, Silver |
| Available Color | Black / Silver |

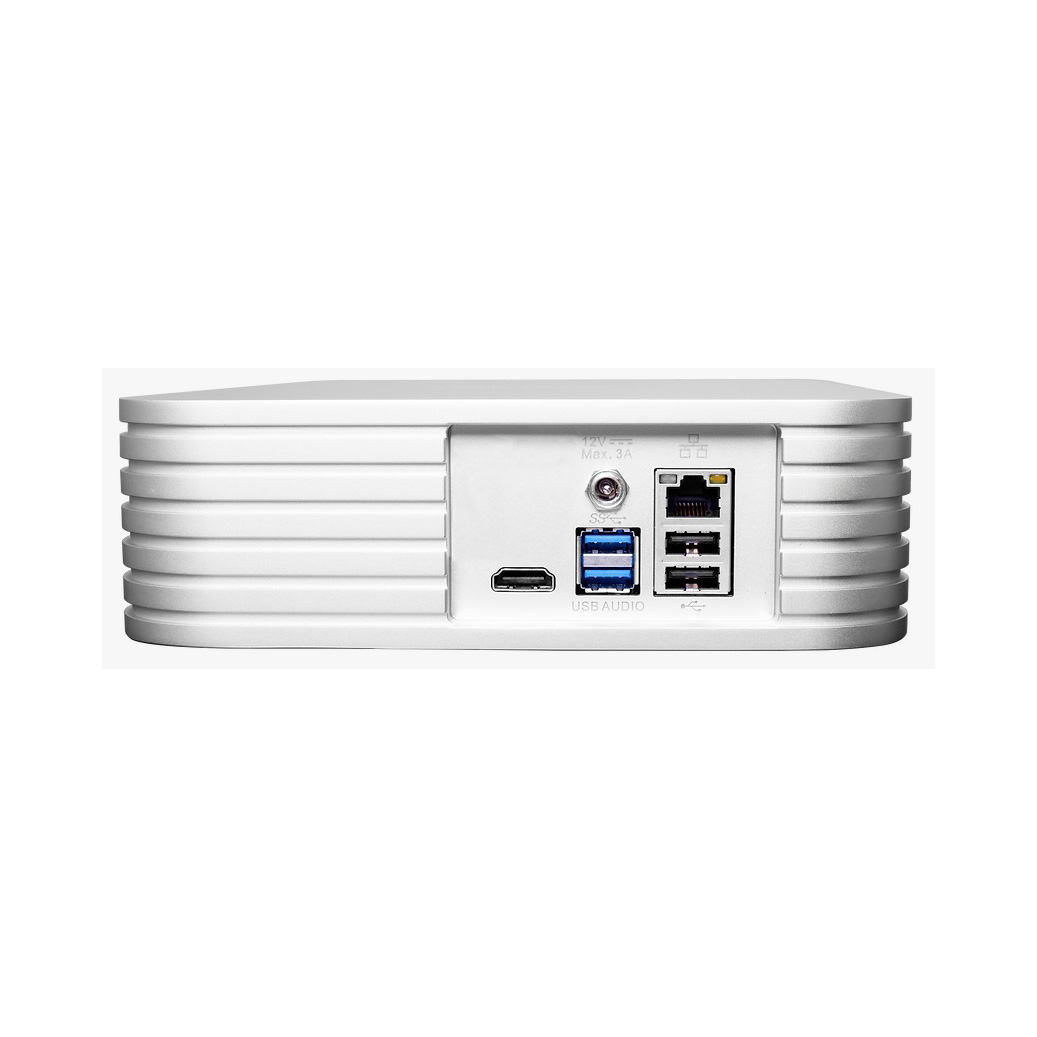

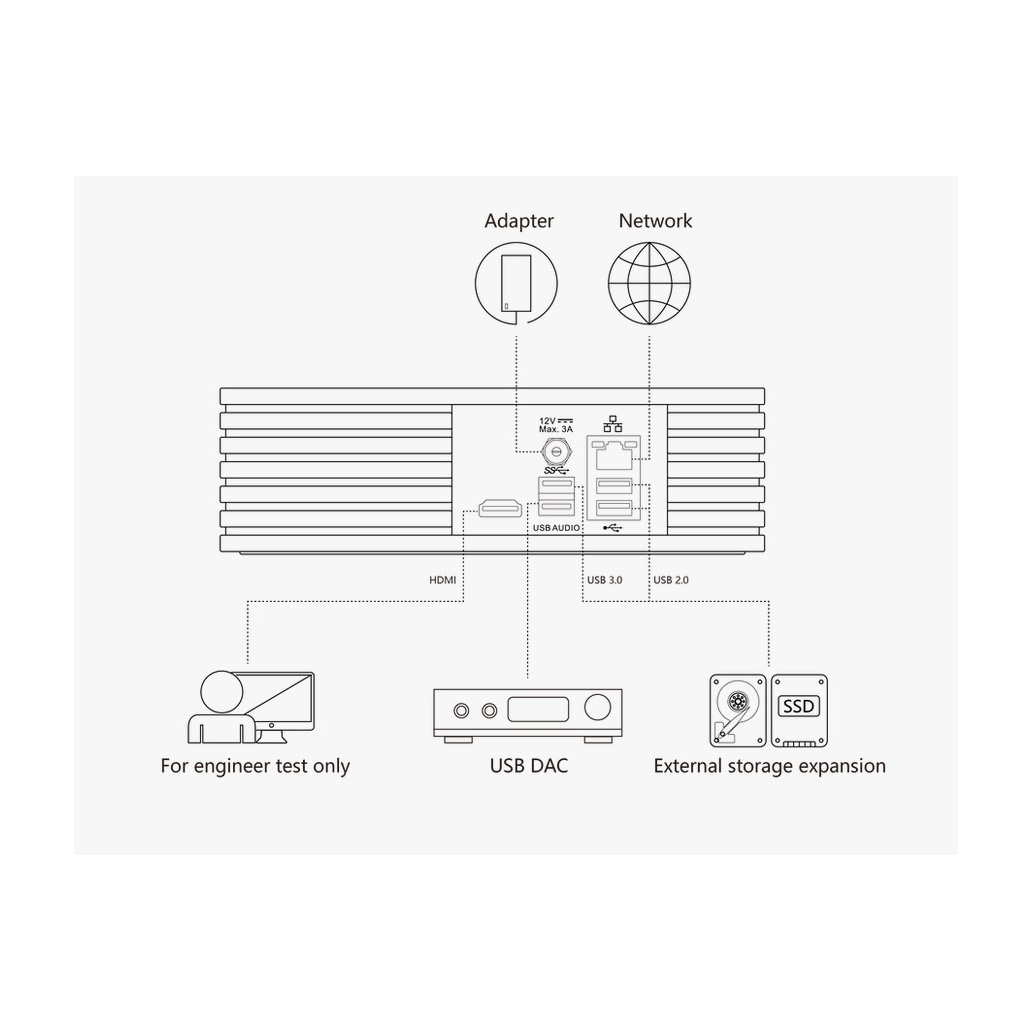

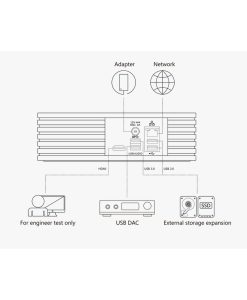

| Interfaces | 1 x 100 / 1000 base-T GbE with link / speed indicator 1 x USB audio (supplies 5VDC @ 0.5A at max) 2 x USB 2.0 (supplies 5VDC @ 0.5A at max) 1 x USB 3.0 (supplies 5VDC @ 2A at max) 1 x HDMI 1.4 |
| Power Button | Aluminum alloy material |
| Power Indicator | Blue light |

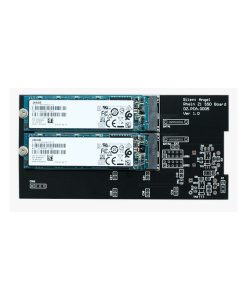

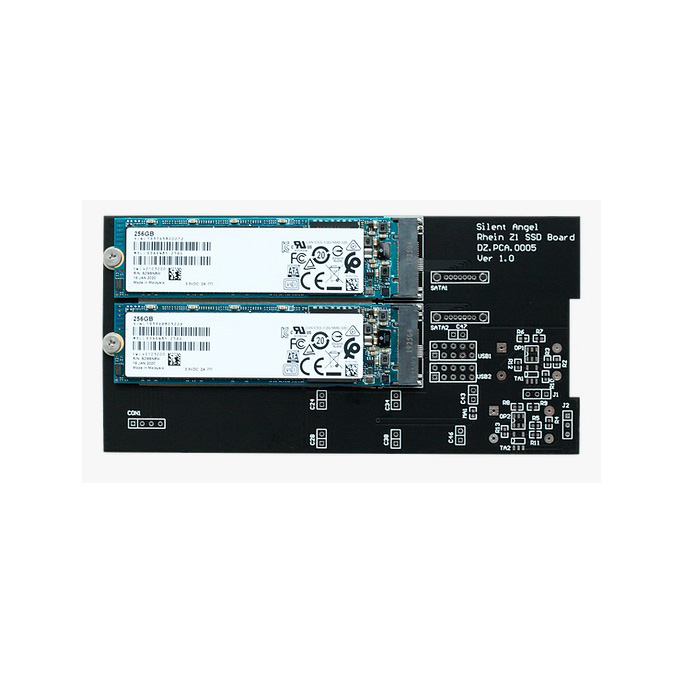

| System Disk | 250GB Silent Angel customized SSD |
| Storage Disk | 1TB or 2TB Silent Angel customized SSD (optional) |

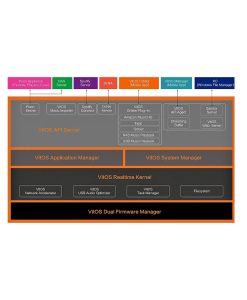

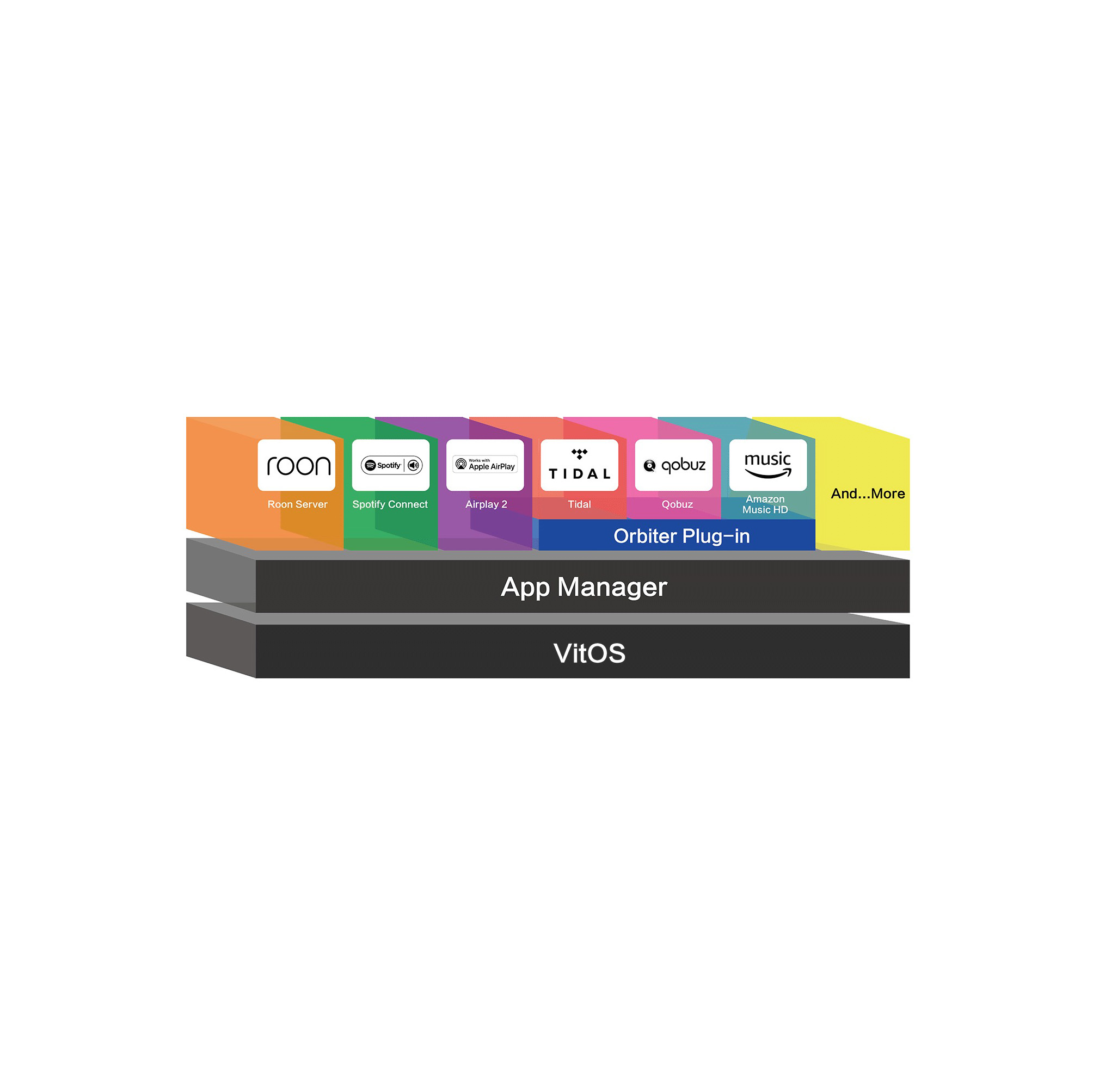

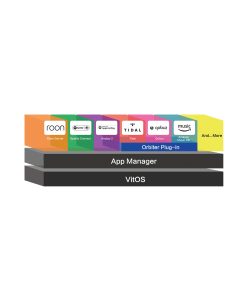

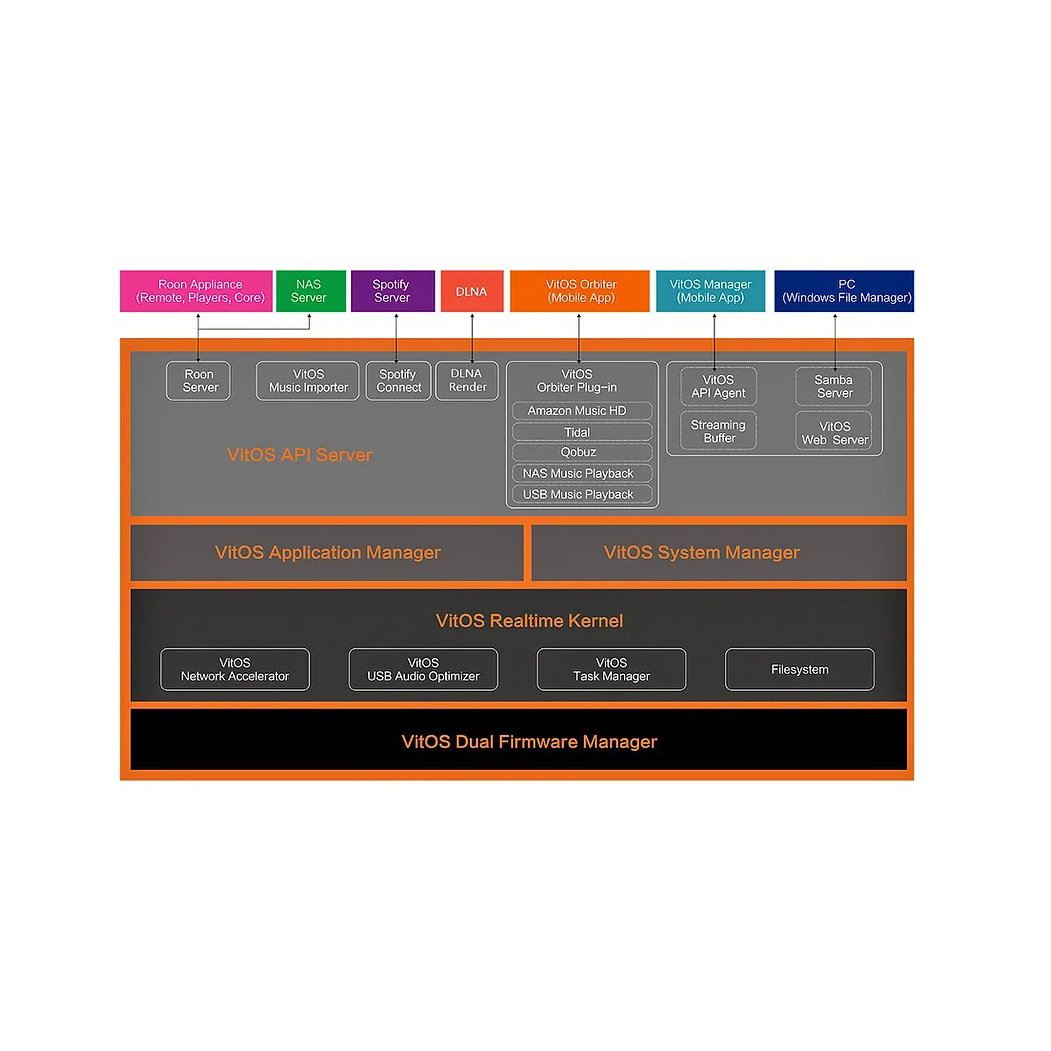

| System OS | VitOS |
| CPU Power Consumption | 6 Watt |
| SSD Power Consumption | 60 mWatt at max |
| EMI Absorber | Silent Angel Noise Absorber (SANA) |
| Power Adaptor | 12VDC 7A switching power adaptor |

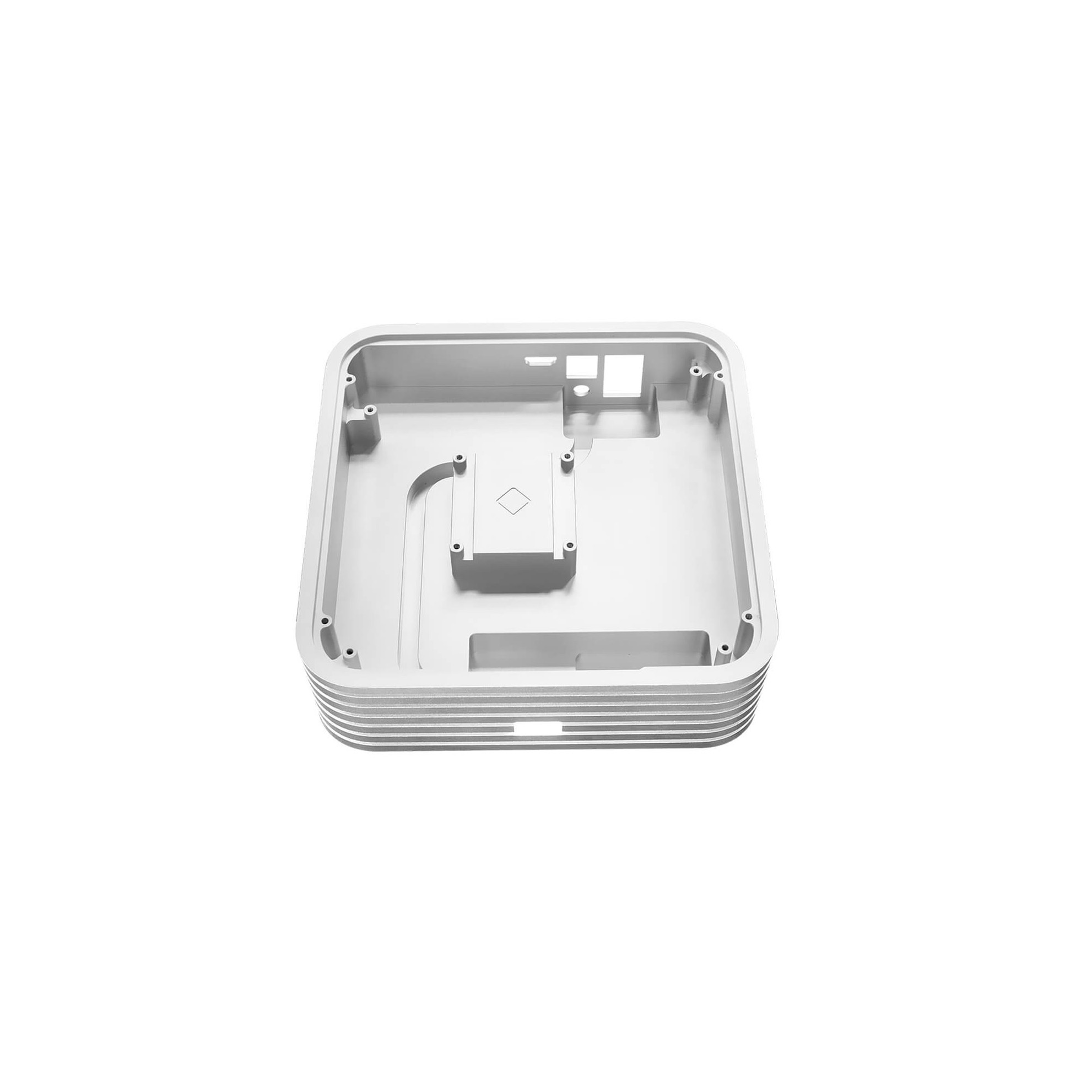

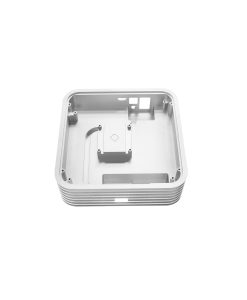

| Chassis Material | 6061 aluminum alloy (at least 8mm thickness) chassis |
| Input Power | External power 12VDC at 2A at max. * |
| Power Consumption | 24W at max. ** |
| Dimension | 7.87(W) inch x 2.56(H) inch x 7.87(D) inch 200(W) mm x 65(H) mm x 200(D) mm |
| Weight | 14.22 lbs / 6.45kg (gross weight) |
| Temperature | Operating: 32 ~ 86 °F (0 ~ 35 °C) Storage: -4 ~ 158 °F (-20 ~ 70 °C) |
| Humidity | Operating: 10% ~ 90% RH (non-condensing) Storage: 5% ~ 95% RH (non-condensing |
| Certificate | CE, FCC |
